Cable run, right wing looking towards root. |
|
| |
 |
|
| |
Wiring conduit, light pvc tubing with modified pvc mounts. All from Home Depot. |
|
| |
 |
|
| |
Cut out above wing strut mount held in place with 3m super 77 adhesive. |
|
| |
 |
|
| |
Trailing edge skin cut for main wing strut mount. |
|
| |
 |
|
| |
Final trailing edge skin placement at wing strut mount. |
|
| |
 |
|
| |

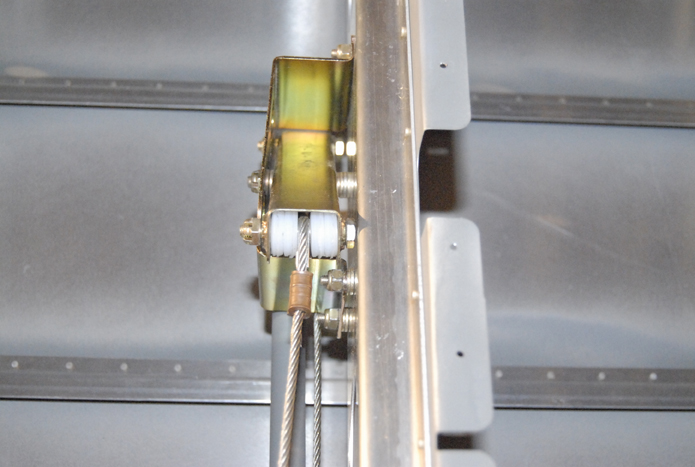

Aileron bellcrank showing nut position for easy inspection and easy cable replacement. |
|
| |
 |
|
| |
Flap bellcrank showing bolt head interference. Bellcrank as far left as possible, (note gap at pivot bolt). |
|
| |
 |
|
| |
Lower bolts of bellcrank bracket are shimmed out with two washers each. Three washers at right side of pivot bolt. |
|
